Anchor winch Quick PTR 150 Watt
- Product Code: Якорная лебедка Quick PTR 150 Ватт
- Availability: In Stock
0.00₴

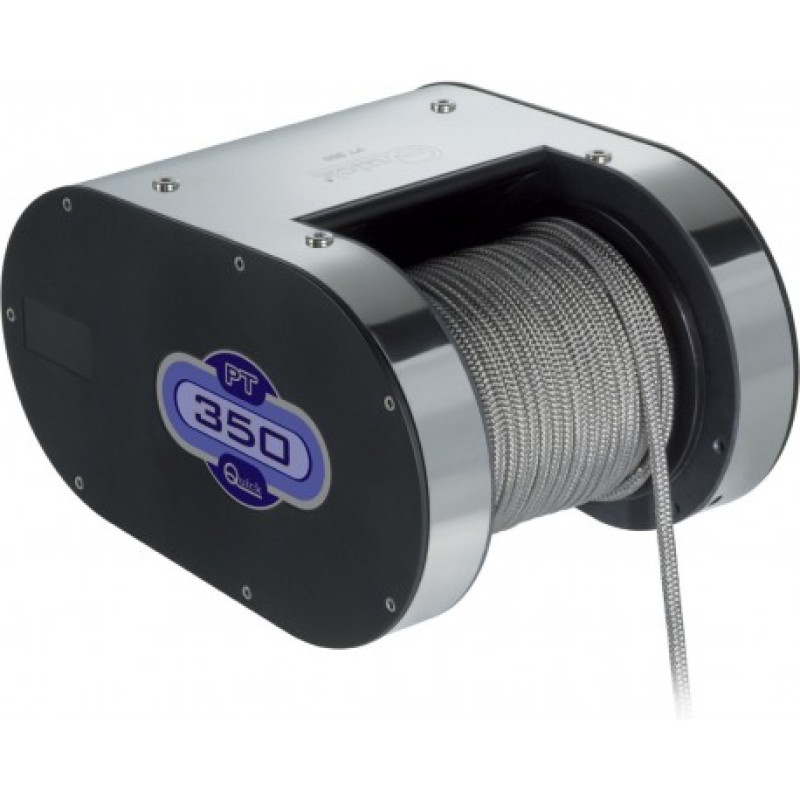

An anchor winch winding a cable onto its own drum. An excellent solution for boats that do not have a place under the deck for storing a chain / cable for installing a winch of a traditional design. The drum holds about 30 meters of cable with a diameter of 6 mm. The engine is protected from water (IP66 protection class). The package includes a load switching relay.
| General | |
| Application (boat length) | 6 - 9 m 20 - 29 ft. |
| Cable diameter | 6m n |
| Chain retrieval speed at working load | 19.3 m/min 63.3 ft/min |
| Continuous load | 40 kg 88.1 lb |
| Current draw at continuous load | 13 A |
| Deck thickness | 20 - 40mm |
| Drum | net |
| Hull type | Corps |
| Manufacturer | Quick. |
| Max. chain retrieval speed | 20.8 m/min 68.2 ft/min |
| Max. pull | 260 kg 573.2 lb |
| Max. working load | 100 kg 220.4 lb |
| Power | 150 watts. |
| Supply voltage | 12 V |
| Type | Anchor winch |
| Windlass weight | 10 kg 22 lb |
